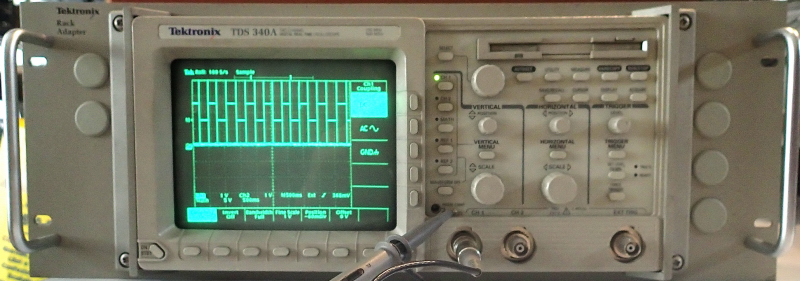

Tektronix TDS 340A

•
  2 input channels, each with a record length of 1,000 samples and 8-bit vertical resolution. Both channels acquire waveforms simultaneously.
•
  500 Megasamples/second maximum sample rate.
•
  100 MHz analog bandwidth and fastest time base setting of 5 ns/div.
•
  A full complement of advanced functions including on-screen readout, AUTOSET, cursors, continuously updated automatic measurements, and FFT.
•
  Waveform averaging, waveform enveloping, and hardware peak detection.
•
  Floppy disk drive for mass storage of waveforms, setups, and hard copies.
•  A unique graphical user interface (GUI) and a logical front-panel layout which combine to deliver the standard in usability pioneered by the TDS family of oscilloscopes.
