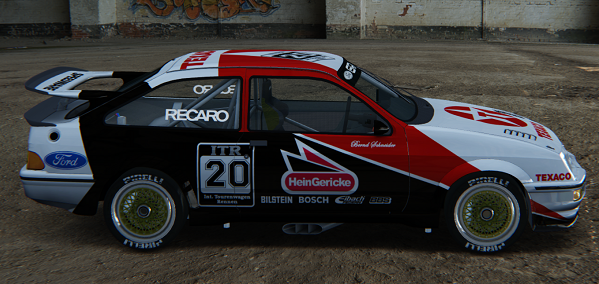

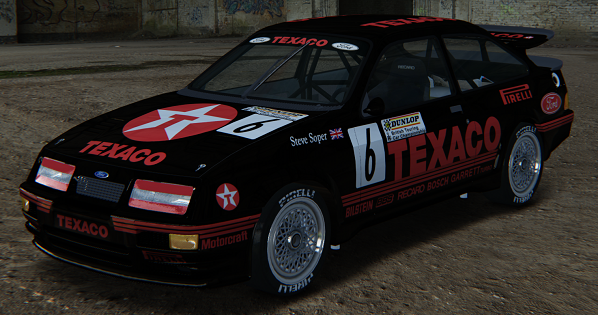

Ford Sierra Cosworth RS500 1990

Features

• Top speed 300 km/h (186.41 mph)
• Acceleration 0-100 km/h: 4.8 s
• Wheelbase 2605 mm
• Track width 1750 mm (both front and rear)
• Weight 1.305 kg
• Length 4460 mm, width 1745 mm, height 1450 mm
• 120 ltr safety fuel cell (from 1988) with fast refuel connectors
• Roll gage Matter 25CrMo4

Engine

• Ford Cosworth Eggenberger engine
• 4 cylinders, water cooled
• 1993 cm3, bore 90.82 mm, stroke 76.95 mm
• Two over head cams, four valves per cylinder
• Compression ratio 7.5:1
• Max power: 480 hp at 6500 RPM (353 kW)
• Max torque: 450 Nm at 5300 RPM
• Engine management system (ECU) is original Bosch Motronic MP 1.7

Gearbox

• Getrac 265/3,53,
• With sand casted shell, mechanical oil pump and oil cooling system
• Final drive 7,5″ with ZF limited-slip-differential (plate type), electrical oil pump and oil cooling system
• Tube type drive shafts by Eggenberger

Brakes

• Homologated AP Racing brakes
• 4 piston calipers
• 330 mm front disks, ventilated
• 285 mm rear disks, ventilated

Suspension

• magnesium suspension components

Wheels

• 10″ x 17″ center nut BBS magnesium race rims
• 235/630R17 Dunlop race tyres
