IRobot Roomba^® s9 is a robot vacuum cleaner with a Lithium-Ion battery that can be recharged in the base provided in the package.

The s9+ version comes with a larger base where the robot can periodically empty the collected dirt in a bag.

Price:

s9  about 999 $

s9+ about 1.299 $

This robot uses new cleaning technologies: Imprint™, PerfectEdge®. Anti-Allergens, vSLAM®.

Compared to previous models (880 and 980), the suction power is higher and Imprint™ technology allows Roomba s9+ robot vacuum to learn, map and adapt to the room by choosing the most appropriate cleaning mode. PerfectEdge® technology, which consists of a new angled brush, totally redesigned and different from previous brushes, ensures optimal cleaning along edges and in corners.

The Anti-Allergen system is able to block and store 99% of pollen and mold in the passage from the robot to the Base without returning to the air. It is a system that follows that of the EPA filter, but more effective and sophisticated.

vSLAM® uses a very precise optical sensor to store over 230,400 pieces of information per second, which will allow the robot to create a map of the environment so it knows where it is, where it has already been and where it still needs to clean.

Another useful new feature is the ability to exclude areas containing delicate objects from the cleaning path and to store saved settings in the future.

Ordinary maintenance

Empty the dust container

• Press the dust container cover release and lift the container

• Lift handle to remove dust container

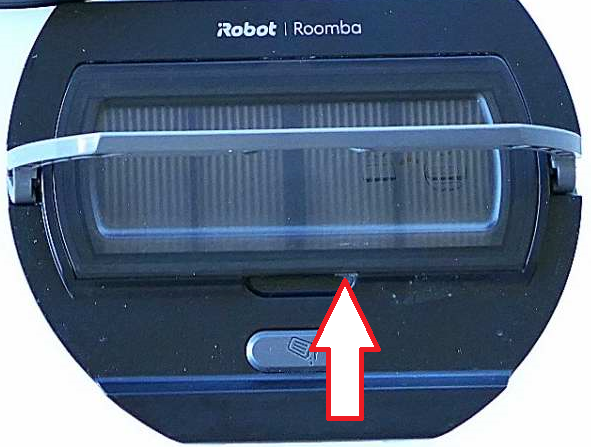

• Press the drawer release button to empty the dust container. Warning: It takes a lot of effort to lift the lid.

• Open the filter door and remove the filter by grasping the tab.

• Remove debris by tapping the filter on the waste basket.

• Replace the filter and close the filter door.

The dust container can be washed. Warning: the filter must not be washed.

Clean the angle brush

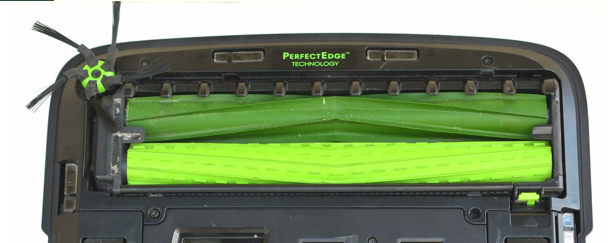

•  Use a small screwdriver to loosen the screw holding the angle brush in place and pull to remove the angle brush. Remove any odetritic hair, then reinstall the brush.

Clean the rear caster wheel

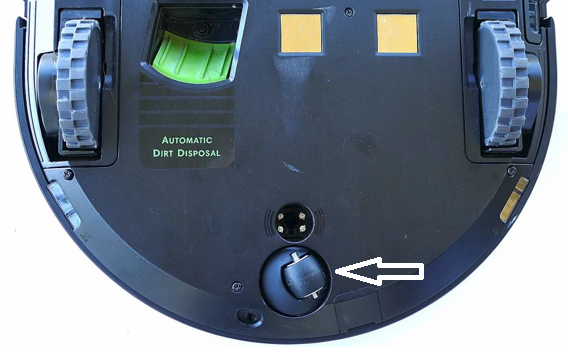

• Pull firmly on the rear caster wheel module to remove it from the robot body and pull or push firmly on the wheel to remove it from its housing.

• Remove any debris inside the wheel cavity
• When finished, reinstall all components. Make sure the wheel clicks into place.

Multi-surface brush cleaning

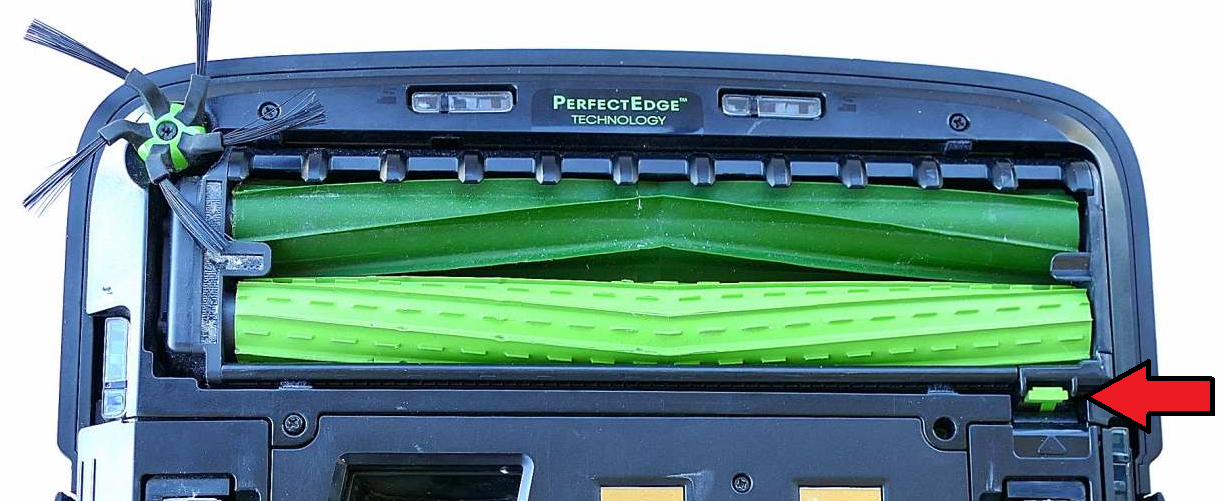

• Lift the brush frame release tabs, lift the brush frame and remove any debris.

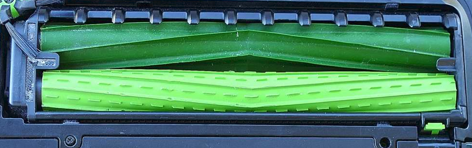

• Remove brushes from robot. Remove brush seals from ends of brushes. Remove any hair or debris from seals. Reinstall brush seals.

  Remove any hair or debris from square and star-shaped tips on end of brushes.




• Reinstall the brushes in the robot. Match the shape of the brush tips to the shape of the corresponding cleaning head module.




Non ordinary maintenance

Battery replacement

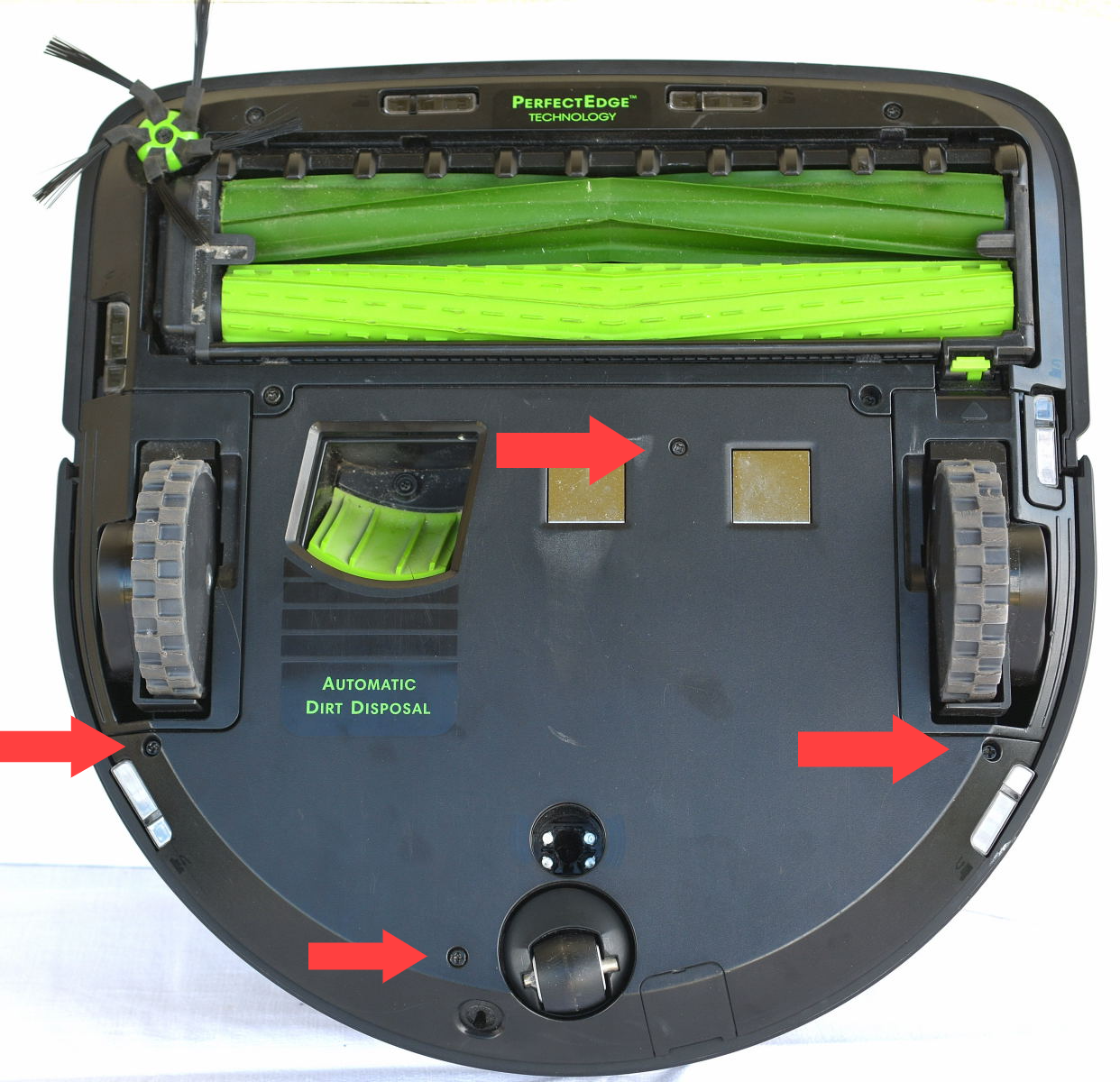

• Unscrew the 4 screws of the bottom.

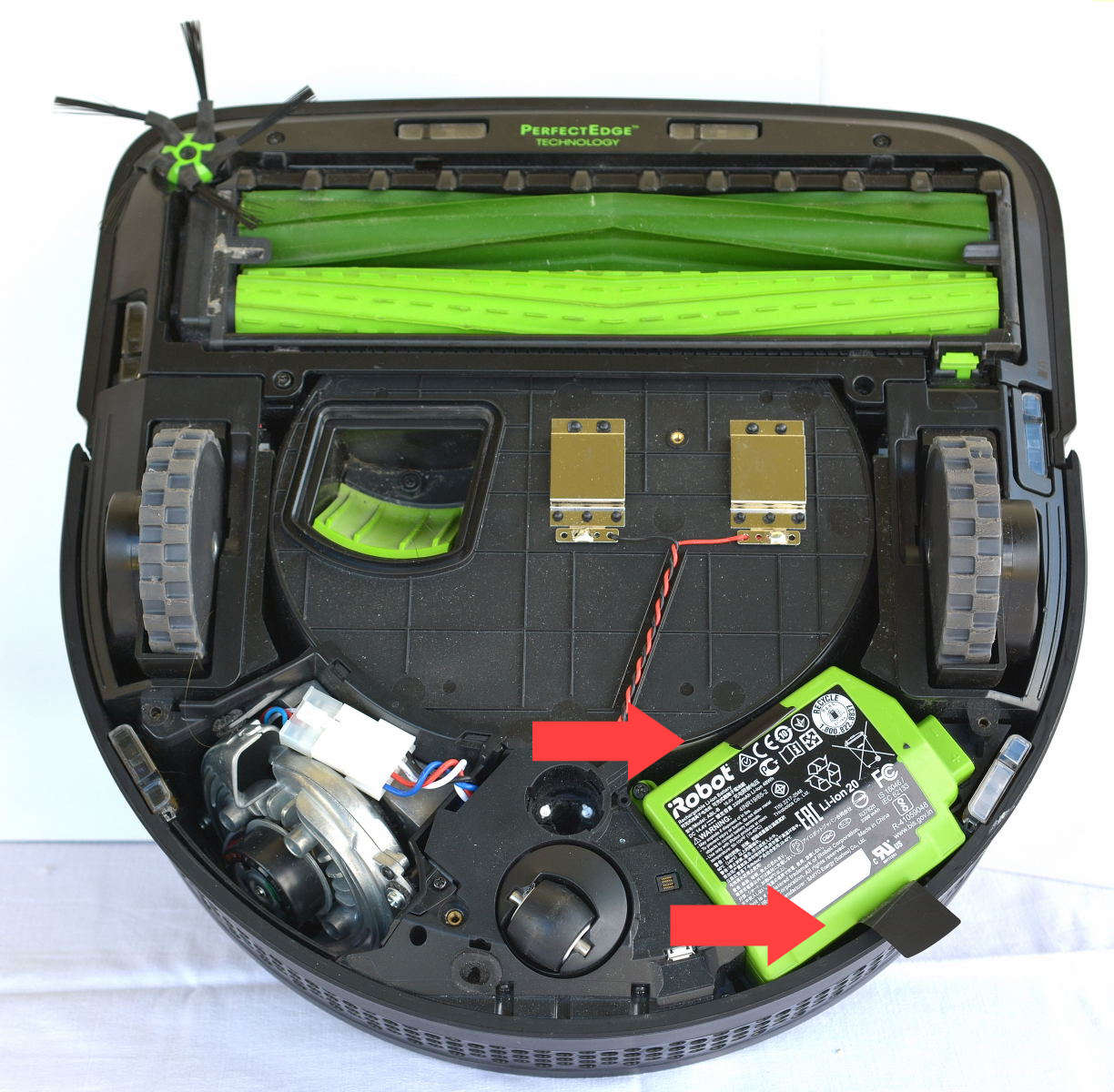

• The battery pulls out via the two tabs.


Replacing the multi-surface brushes unit

• Remove the angle brush

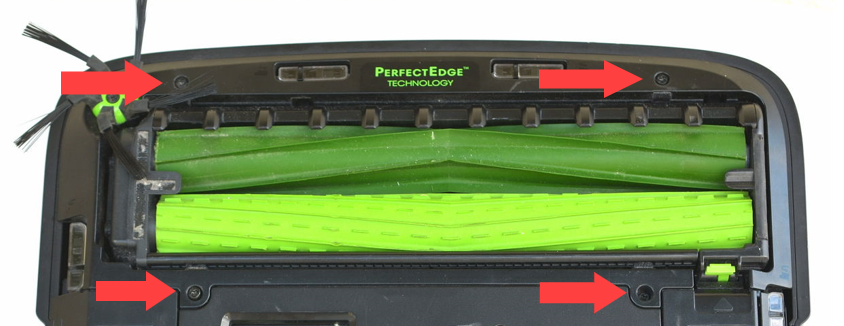

• Unscrew the 4 screws that hold the brush assembly to the body of your Roomba s9

End of maintenance!
