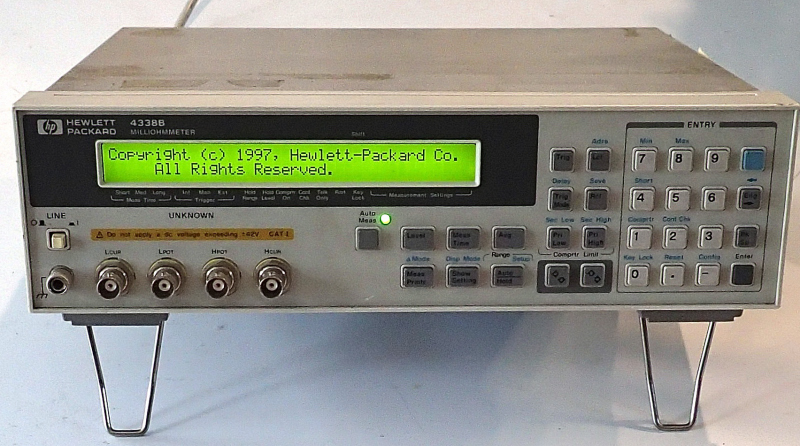

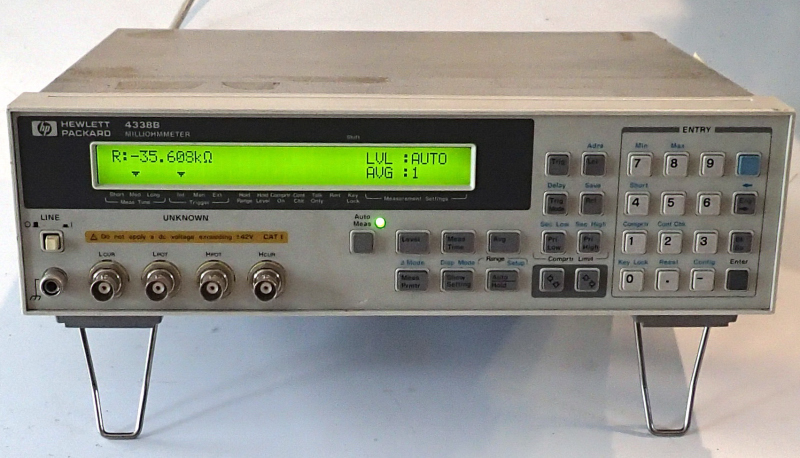

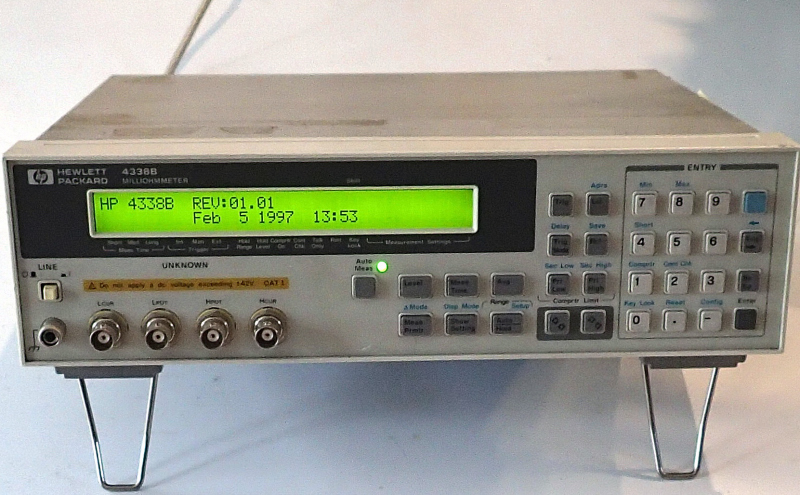

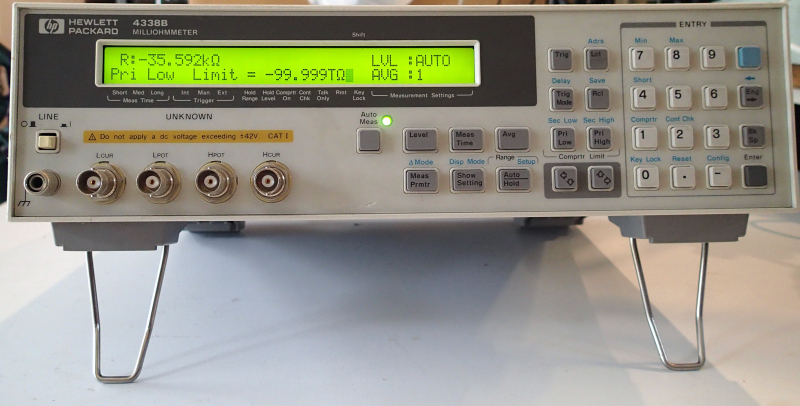

HP 4338B MilliOhmmeter
Measurement conditions and functions
Test frequency: 1 kHz ± 0.1%
AC test signal level (rms current): 1 μA, 10 μA, 100 μA, 1 mA, 10 mA
Maximum applied AC voltage: 20 mV peak
Maximum DC voltage to BNC terminals: 42 V
Ranging: Auto and hold
Maximum cable length: 2 meters
Trigger: Internal, manual, and external
Delay time: 0 to 9999 ms in 1-ms steps
Averaging: 1 to 256
Measurement time (typical):
Short Medium Long
34 ms 70 ms 900 ms
Other instrument functions
Math functions: Deviation (Δ) and percent deviation (%Δ).
Short error correction:
Eliminates measurement errors due to parasitic impedances in cables and test fixtures.
Comparator: HIGH, IN, and LOW for primary and secondary parameters.
Continuous memory: All instrument settings are automatically saved for up to 72 hours when power is lost or the instrument is turned off.
Save/recall: 10 instrument states from non-volatile memory.
Contact check: Detects contact failure.

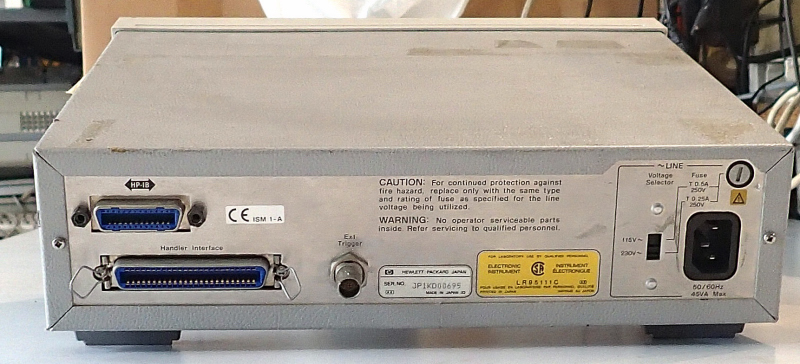

GPIB: Implementation of IEEE-488 for control and data.
Handler interface:
Negative logic and optically isolated; output signals: HIGH/IN/LOW, end-of-measurement, index, and alarm; input signals are keylock and external trigger.
Physical characteristics
Power: 90-132 Vac or 198-264 Vac. 47-66 Hz. 45 VA typical.
Operating temperature: 0 °C to 45 °C
Dimensions: 320(W) x 100(H) x 300(D) mm
Weight: 4.5 kg
