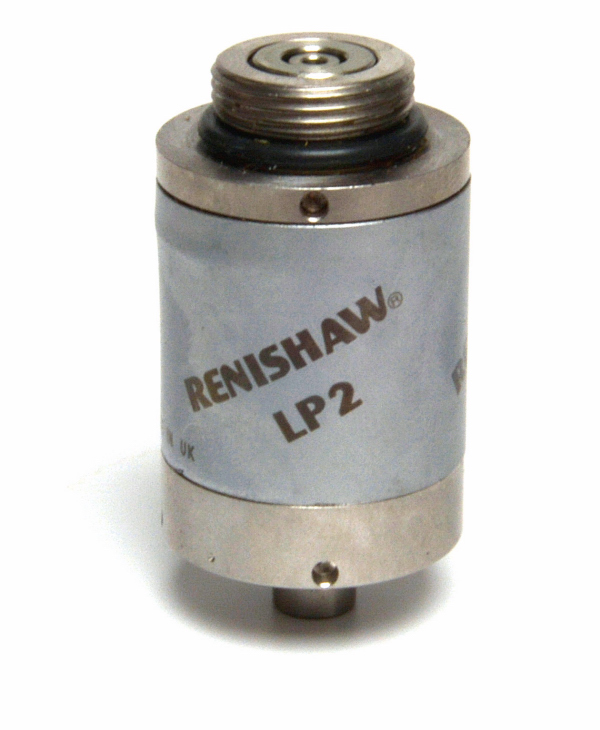

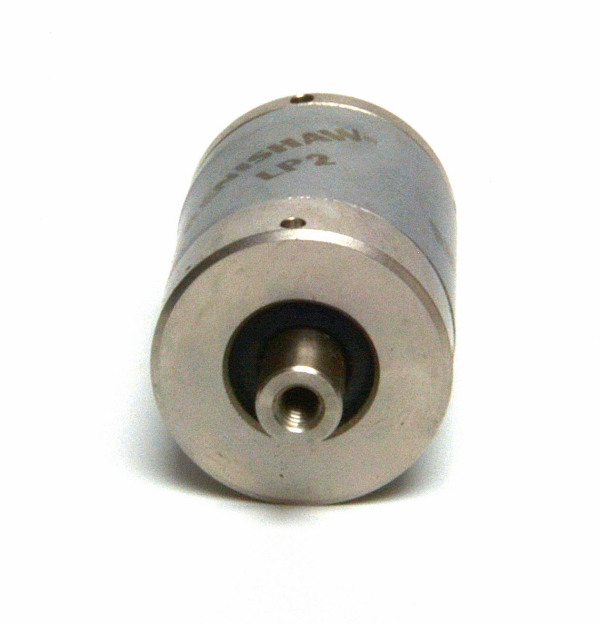

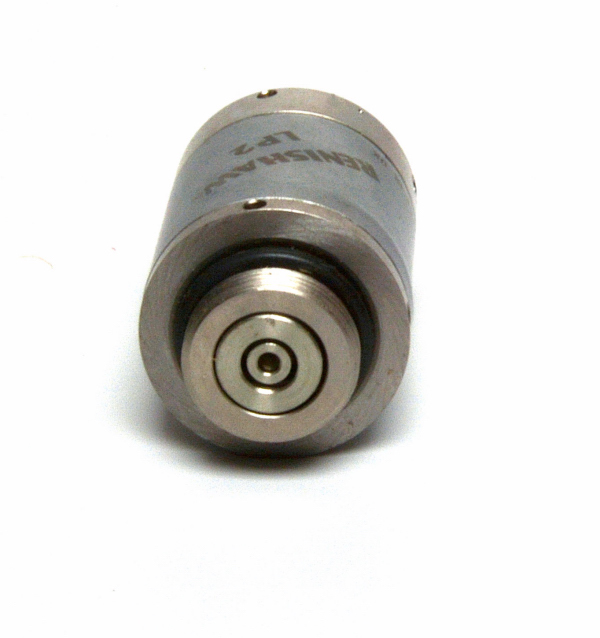

RENISHAW - LP2

Proven kinematic design.
Interference-resistant, hard-wired communication.
Miniature design.
Increased environmental protection.
1 μm to 2 μm 2σ repeatability (dependent on probe).

High-performance, compact probe, suitable for inspection and tool setting applications.

LP2 probe can be used in either optical, radio or hard-wired systems. Optical/radio transmission is best suited to field retrofitting and optional fitment.

The optical/radio transmission method requires either an OMP40M, OMP60M, RMP40M or an RMP60M. These provide a variety of solutions to suit different machine sizes, but each unit is functionally similar. They enable the probe to be turned on and off via an M-code, or turned on via an M-code and turned off via an internal timer.
