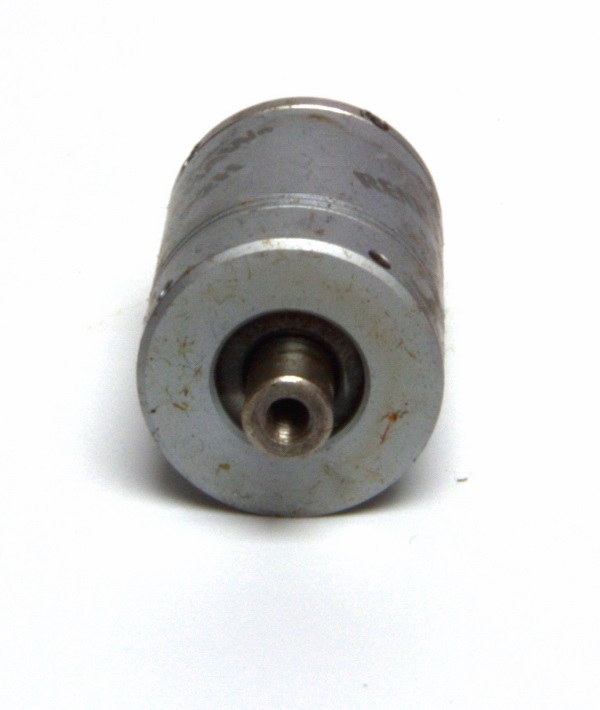

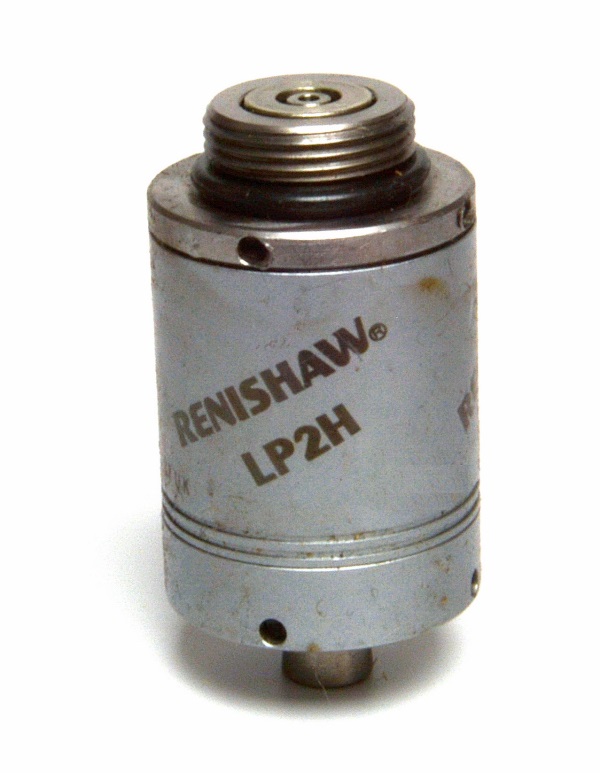

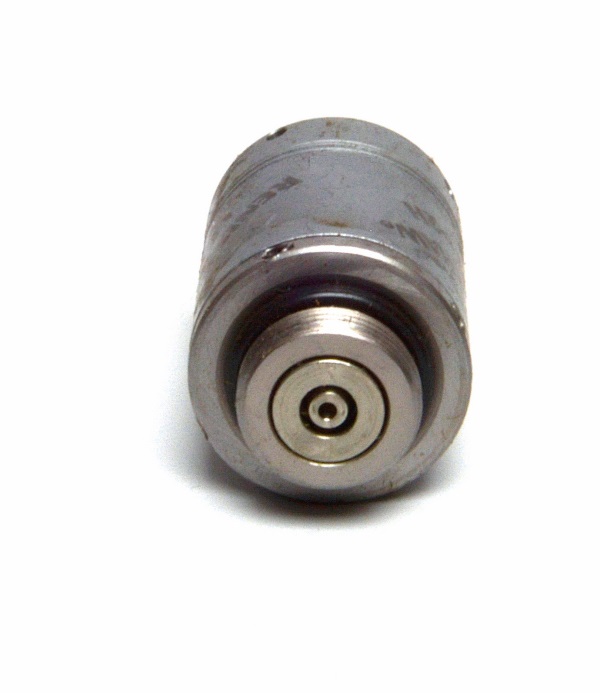

RENISHAW - LP2  and LP2H

Data sheet

file:///C:/1-A-%20Files%20backup/eBay%20%20MANUALI%20Strumentazione/Strumentazione/RENISHAW/Data_sheet_LP2_modular_probe_system_for_tool_setting_and_workpiece_inspection.pdf

Installazione e manuale utente

file:///C:/1-A-%20Files%20backup/eBay%20%20MANUALI%20Strumentazione/Strumentazione/RENISHAW/Installation_and_users_guide_LP2_probe_system%20(1).pdf

Istruzioni per l'assemblaggio

file:///C:/1-A-%20Files%20backup/eBay%20%20MANUALI%20Strumentazione/Strumentazione/RENISHAW/Assembly%20instructions_%20LPS_LP2H%20probe%20diaphragm%20conversion_replacement%20kit.pdf

LP2H has a higher spring force, allowing the use of longer styli and providing greater resistance to machine vibration.

DD variants of both probes are available with double diaphragm sealing for use in harsh environments with particle-laden coolant.

All variants are suitable for use with the modular OMP40M and OMP60M optical transmission systems; RMP40M and RMP60M radio transmission systems; and inductive transmission modules. They can also be hard-wired for grinder inspection applications.

• Proven kinematic design.
• Interference-resistant, hard-wired communication.
• Miniature design.
• Increased environmental protection.
• 1 μm to 2 μm 2σ repeatability (dependent on probe).
