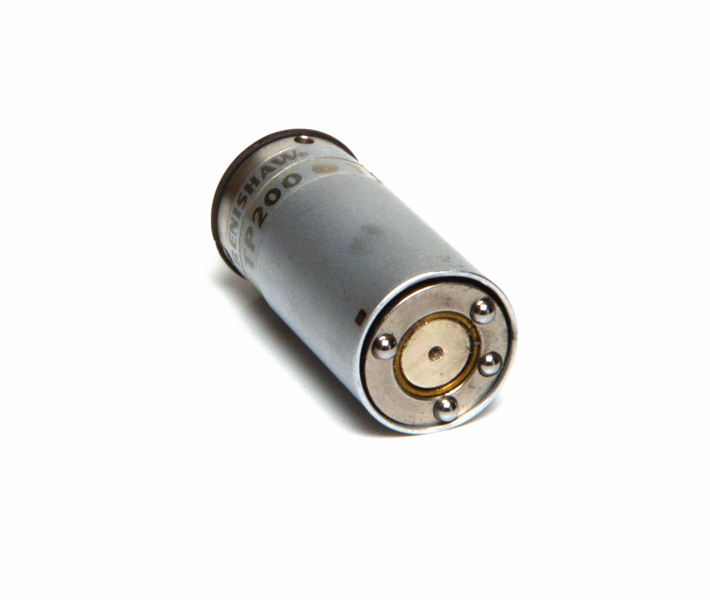

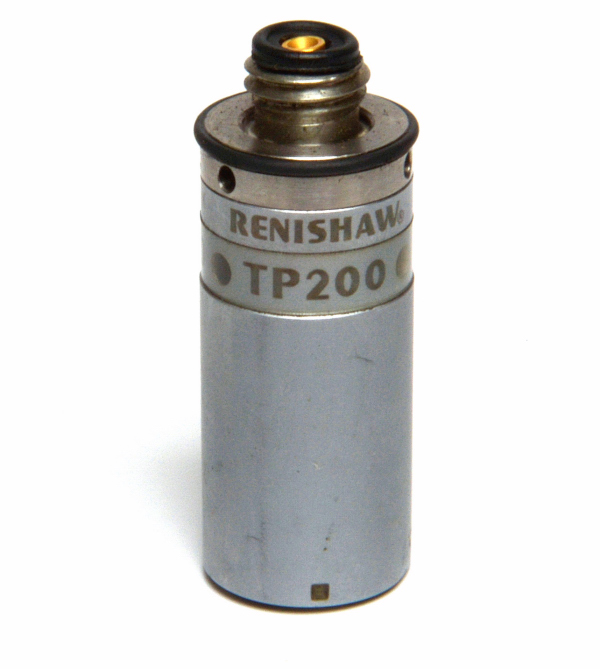

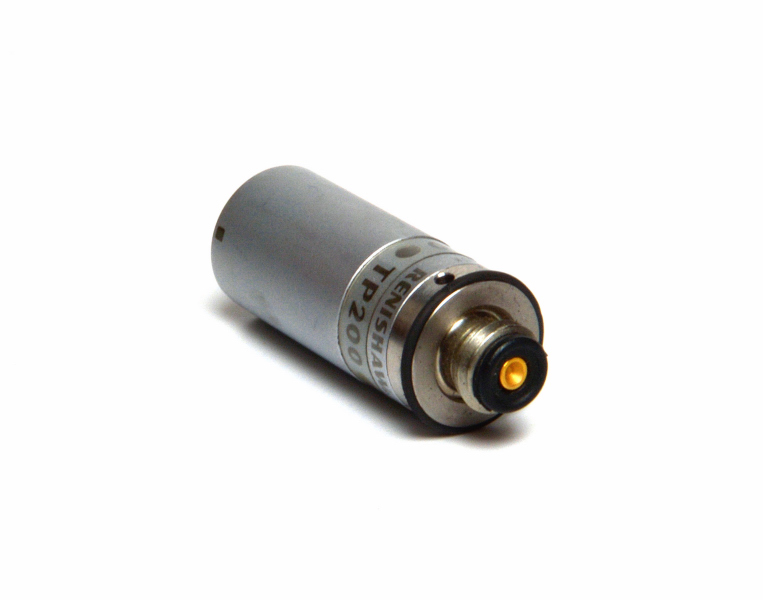

RENISHAW - TP200 Touch probe

A compact, module-changing probe that uses strain-gauge mechanisms for higher accuracy and longer life than kinematic touch-trigger probes.

Specification summary	TP200	TP200B
Principal application	DCC CMM where high accuracy is required.	As TP200 but where 'air' trigger events occur.
Sense directions	6-axis: ±X, ±Y, ±Z	6-axis: ±X, ±Y, ±Z
Unidirectional repeatability (2s µm)	Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in)	Trigger level 1: 0.40 µm (0.000016 in) Trigger level 2: 0.50 µm (0.00002 in)
XY (2D) form measurement deviation	Trigger level 1: ±0.80 µm (0.000032 in) Trigger level 2: ±0.90 µm (0.000036 in)	Trigger level 1: ±1 µm (0.00004 in) Trigger level 2: ±1.2 µm (0.000047 in)
XYZ (3D) form measurement deviation	Trigger level 1: ±1 µm (0.00004 in) Trigger level 2: ±1.40 µm (0.000056 in)	Trigger level 1: ±2.50 µm (0.0001 in) Trigger level 2: ±4 µm (0.00016 in)
Repeatability of stylus change	With SCR200: ±0.50 µm (0.00002 in) max. Manual: ±1 µm (0.00004 in) max.	With SCR200: ±0.50 µm (0.00002 in) max. Manual: ±1 µm (0.00004 in) max.
Trigger force (at stylus tip)	XY plane (all modules): 0.02 N Z-axis (all modules): 0.07 N	XY plane (all modules): 0.02 N Z-axis (all modules): 0.07 N
Overtravel force (@ 0.50 mm displacement)	XY plane (SF / EO module): 0.2 N to 0.4 N XY plane (LF module): 0.1 N to 0.15 N Z-axis (SF / EO module): 4.90 N Z-axis (LF module): 1.60 N	XY plane (SF / EO module): 0.2 N to 0.4 N XY plane (LF module): 0.1 N to 0.15 N Z-axis (SF / EO module): 4.90 N Z-axis (LF module): 1.60 N
Weight (probe sensor and module)	22 g (0.78 oz)	22 g (0.78 oz)
Maximum extension (if on a PH10 PLUS series head)	300 mm (11.81 in)	300 mm (11.81 in)
Maximum recommended stylus length (M2 styli range)	SF / EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GF LF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF	SF / EO module: 50 mm (1.97 in) steel to 100 mm (3.94 in) GF LF module: 20 mm (0.79 in) steel to 50 mm (1.97 in) GF
Mounting method	M8 thread	M8 thread
Suitable interface	PI 200-3, UCC	PI 200-3, UCC
Stylus module changing rack	Automatic: SCR200 Manual: MSR1	Automatic: SCR200 Manual: MSR1
Stylus range	M2	M2
