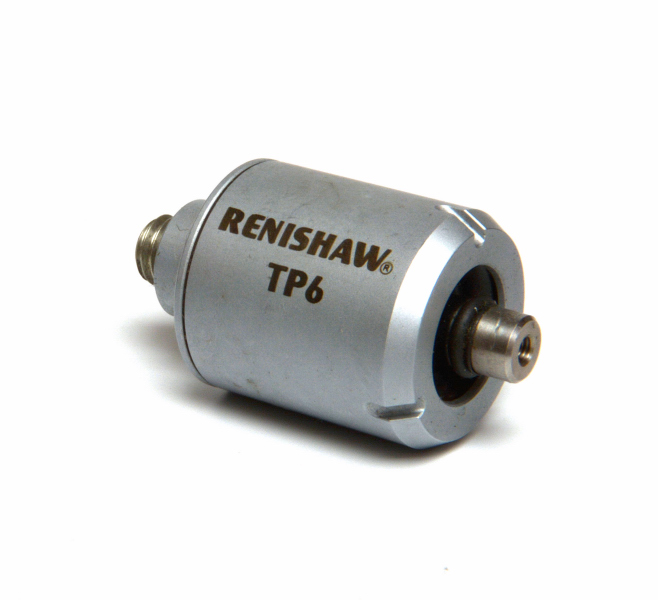

<1 / 3>from Handy23

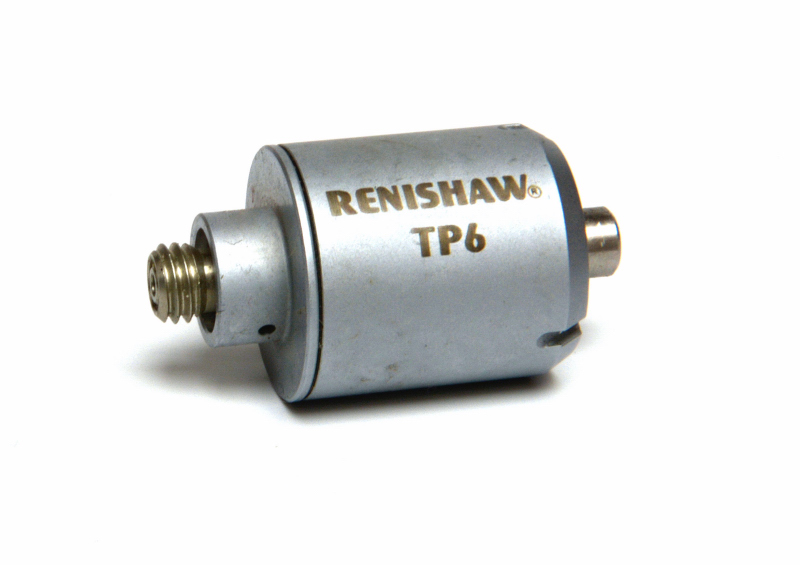

<2 / 3>from Handy23

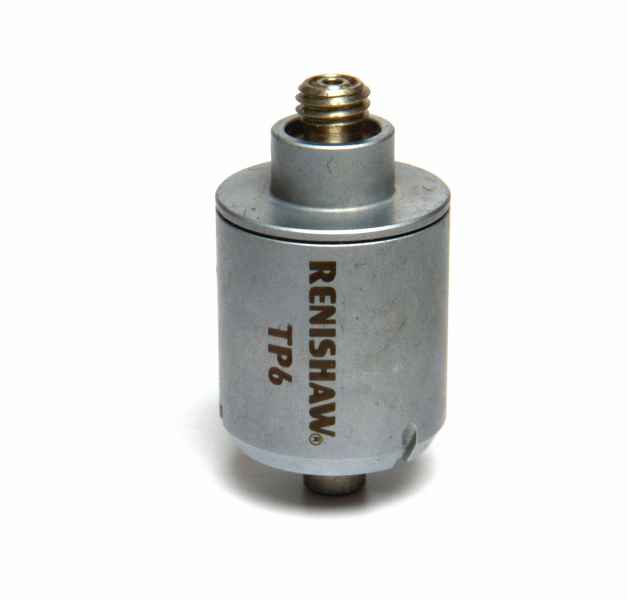

<3 / 3>from Handy23

RENISHAW - TP6 Touch Probe Robust kinematic probes with M8 and autojoint mounting options. TP6 and TP6A with PI 200-3The TP6 and TP6A probes have different probe mount options (M8 thread and autojoint respectively). Both probes are kinematic touch-trigger probes and have manually adjustable trigger force for optimum probe performance with differe... (Read the full Tiiip)

0 pts from Handy23

Evaluate

Where is this found?

Data locked by Al222. You need 10 more points in this category to unlock

"RENISHAW - TP6 Documentation" about RENISHAW - TP6 Touch Probe
by Handy23 (4270 pt)

2018-Mar-07 19:30

RENISHAW - TP6 Technical specification http://www.renishaw.com/cmmsupport/knowledgebase/en/tp6-tp6a-tp6h--22345 ...

Read the full Tiiip

(Send your comment)

"Description" about RENISHAW - TP6 Touch Probe
by Handy23 (4270 pt)

2018-Mar-07 19:27

Read the full Tiiip

(Send your comment)

Read other Tiiips about this object in __Italiano (2)

Brand: RENISHAW

I.C.:

Last update: 2018-03-07 19:20:27

Function: Touch probe

Indicative price:

new $ 1.600 ebay https://www.ebay.it/itm/Renishaw-TP6-CMM-Touch-Probe-Kit-New-in-Box-with-One-Year-Factory-Warranty/202229141495

used GPB 375 ebay https://www.ebay.it/itm/Used-Renishaw-TP6-probe-in-great-condition/162907092425?hash=item25ee04f5c9:g:~tAAAOSw

About Us Terms of use FAQ Invite a Friend Contact Us Language (en)

Select Language

English

Italiano


Donate	App	Join	Log in


Donate	App	Join	Log in

Specification summary	TP6	TP6A
Principal application	Robust universal DCC and manual CMMs.	As TP6 but with fast probe exchange without requalification.
Sense directions	5-axis: ±X, ±Y, +Z	5-axis: ±X, ±Y, +Z
Unidirectional repeatability maximum (2s µm) (at stylus tip)	0.35 µm (0.000014 in)	0.35 µm (0.000014 in)
Pre-travel variation 360° (XY plane)	±1 µm (±0.00004 in)	±1 µm (±0.00004 in)
Weight	56 g (1.98 oz)	76 g (2.68 oz)
Stylus range	M3	M3
Stylus force range (adjustable)	0.11 N to 0.3 N	0.11 N to 0.3 N
Stylus force (set by Renishaw)	0.11 N to 0.13 N	0.11 N to 0.13 N
Stylus overtravel (typical)	XY plane: ±22° +Z-axis: 5.5 mm (0.22 in) at 0.11 N 2 mm (0.08 in) at 0.3 N	XY plane: ±22° +Z-axis: 5.5 mm (0.22 in) at 0.11 N 2 mm (0.08 in) at 0.3 N
Maximum extension on PH10 series	200 mm (7.87 in)	200 mm (7.87 in)
Mounting method	M8 thread	Autojoint
Suitable interface	PI 7-3, PI 200-3, UCC	PI 7-3, PI 200-3, UCC
