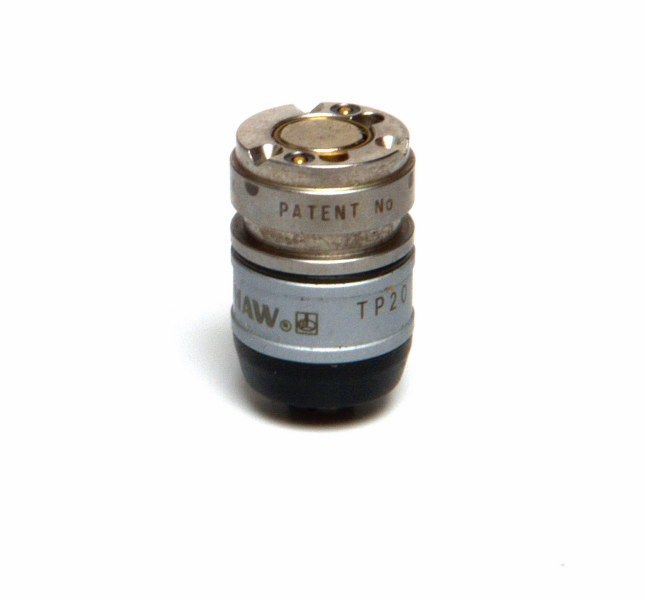

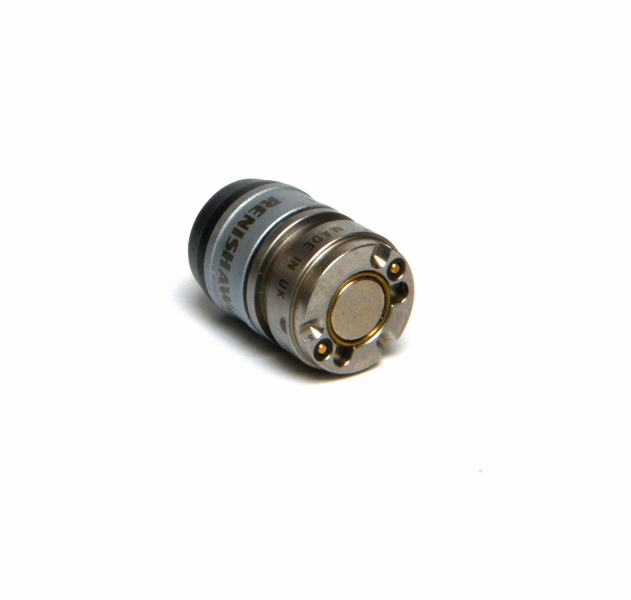

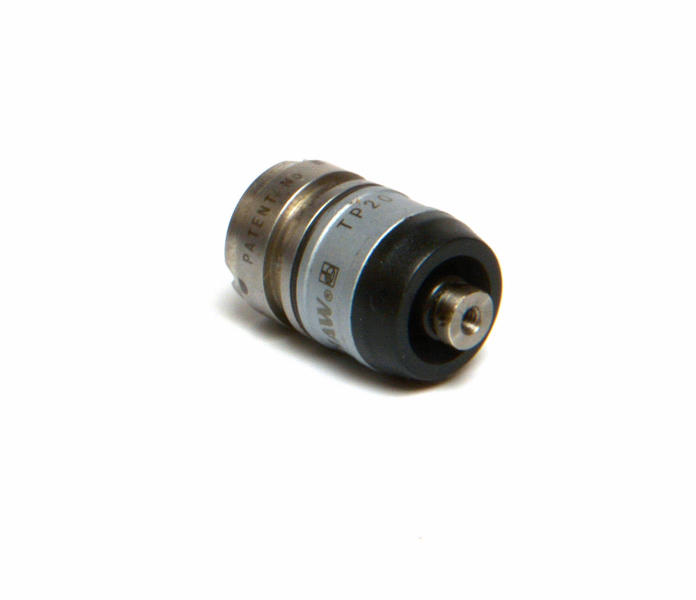

RENISHAW - TP20 STD Standard Force

TP20 probe system

The TP20 is a touch-trigger probe that gives its users the ability to change stylus confi gurations manually or automatically, without re-qualifi cation.

The TP20 is now widely accepted as the industry standard replacement for the TP2-5W probe, offering a range of new benefi ts. It can be easily retrofi tted to manual and DCC co-ordinate measuring machines (CMMs).

The range of modules.

A range of seven, application specifi c, stylus modules is available:

The low force module (LF) for high accuracy with short styli and delicate materials.

The standard force module (SF) is suitable for most applications.

The medium force module (MF) is suitable for vibration resistance when using longer styli.

The extended force module (EF) is suitable for very large stylus arrangements.

The 6-way module (6W) for measuring grooves and undercuts, has signifi cantly improved metrology performance over the TP2-6 way.

Two extension modules (EM1 and EM2) improve reach and offer better metrology performance than using equivalent length styli.
