This video recorder has a resolution of 1080p and therefore accepts 5 Megapixel cameras.

It has 4 channels that are good for a small home plant.

The vision is very clear and is easily installed. A SATA Hard Disk must be added.

The Cons are as follows.

• The movement sensor parameters must be changed. It would not be a great undertaking if not that the software is quite complicated and the menus are many.
• The instructions consist of a color and English leaflet illustrating the product and the main functions. No guided tour.

• The time bar is not expandable, so you need to make millimetric movements with the mouse.

It is a product for specialized technicians because it has a myriad of functions that need to be set.

I replaced it after a short time with another product.

AHD digital video recorder, TVI, CVI and CVBS
4 video inputs for AHD cameras, analog and IP onvif. Accepts input from IP cameras up to 5 megapixels and AHD cameras up to 4mpx.

• Resolution AHD: 5Mpx, 4Mpx, 3Mpx, 1080p, 720p
• Analog resolution: 960H
• IP resolution: 5Mpx, 3Mpx, 1080p and 720P

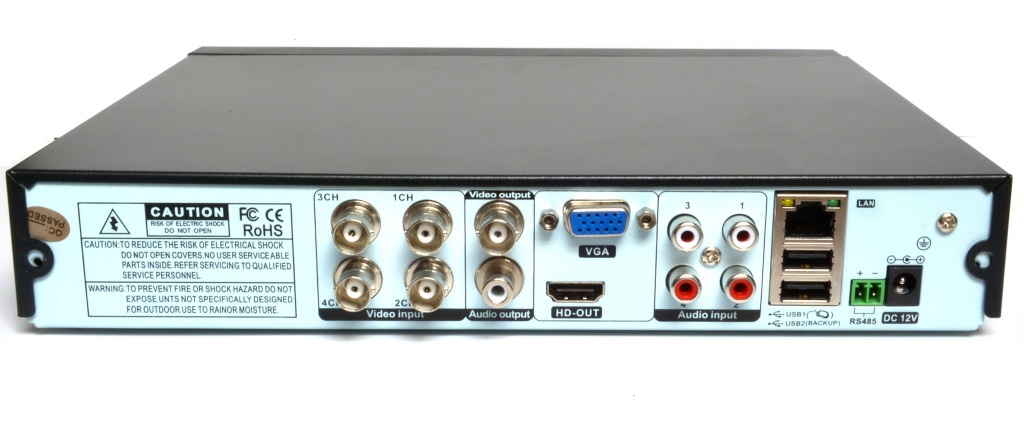

• HDMI and VGA video outputs
• Remote control from PC
• Smartphone control
• P2P CLOUD server for web connection without opening doors or DDNS.
• Free APP for iOS, Android with sending push notifications.
• CMS software included.
• PTZ control via RS485 and IP
• 4 audio inputs
• Motion detection
• Privacy obscured areas
• Alarm notifications by e-mail
• USB port for keys / HDD / DVD
• Mouse included
• (Hard Disk not included)
• Special features of the DVR
• PAP function (PICTURE AND PICTURE)
• PIP function (PICTURE IN PICTURE)
• Remote control function
• No router mappings
• No DDNS
• Hexaplex
