Manuals

Here you can find the data sheets

Data sheet with measurements

Here the specifications for probes and CNC

Repairs

Here a forum to repair the TS27R probe

How it works

YouTube Setup and calibration probe TS27R

YouTube stylus mounting and alignment

Calibration

Renishaw touch probe calibration routine forum

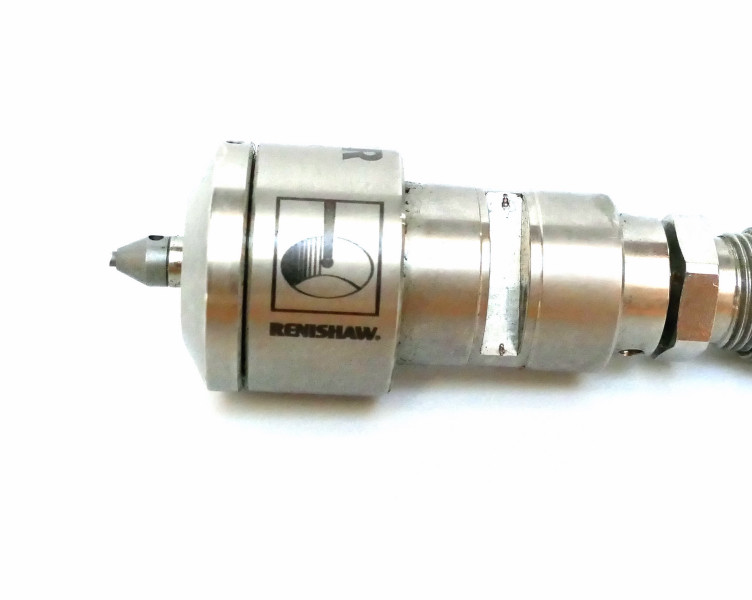

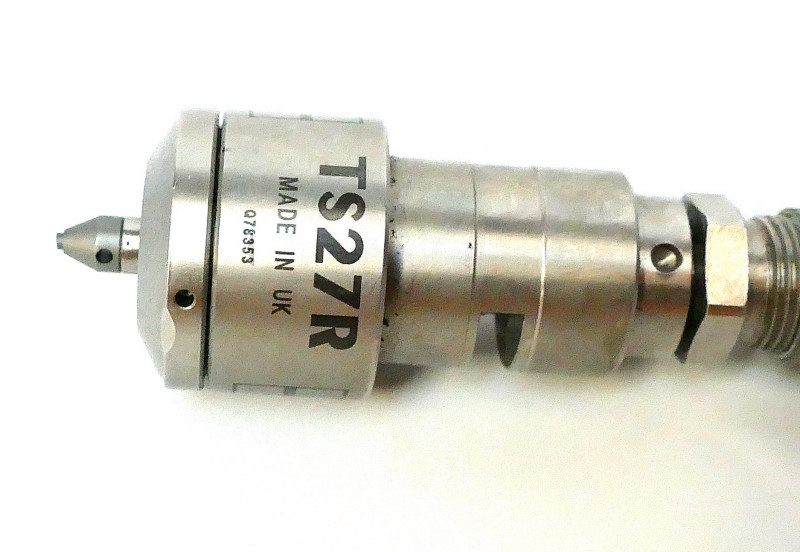

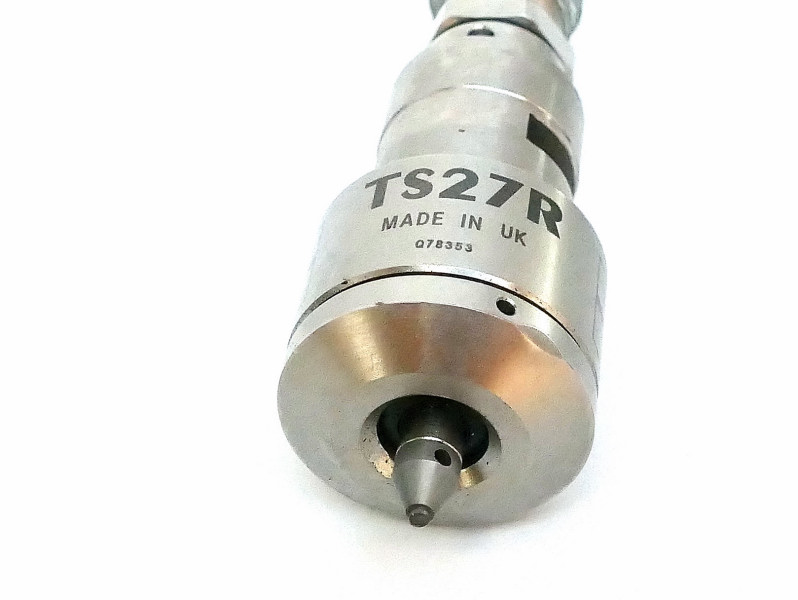

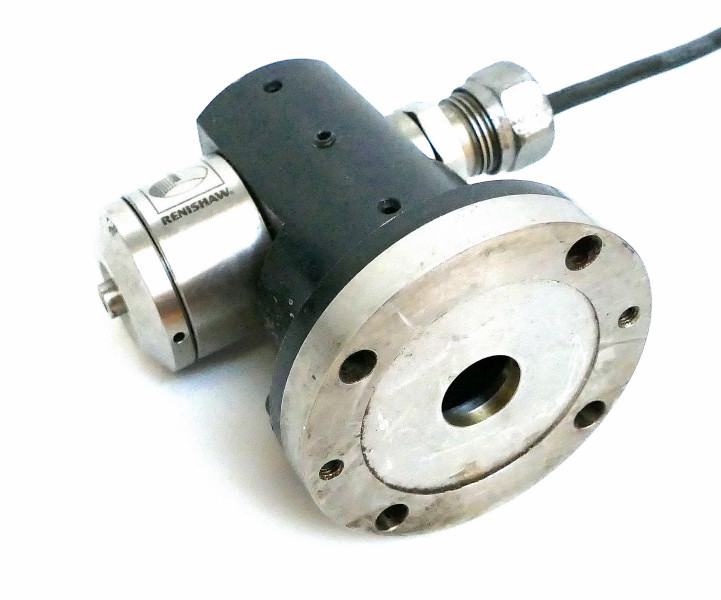

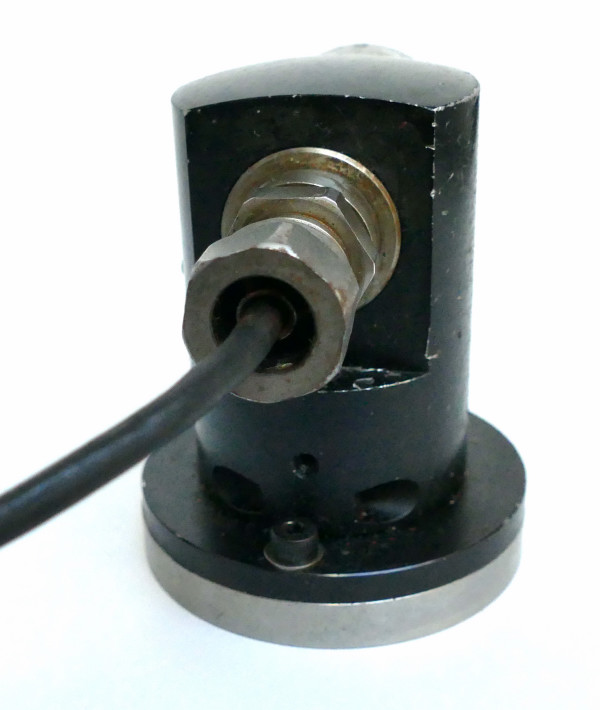

Renishaw TS27R is a contact tool setting probe.

It is particularly useful for measuring tool length and diameter and performs a complete check.

Functions:

• Proven kinematic design.
• Cable communications are resistant to interference.
• Reduces costs for tool reset operations on all machining centers.
• Repeatability of 1.00 μm 2σ.

The Renishaw TS27R probe can be driven with the following software packages:

• GoProbe - an introductory package for part set-up and tool setting.
• Renishaw tool setting software - an introductory package that makes it easy to call up tool setting cycles and check tool integrity
