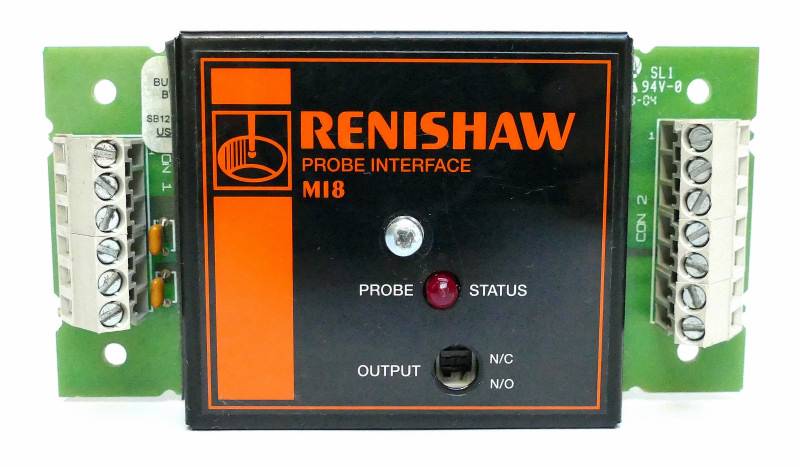

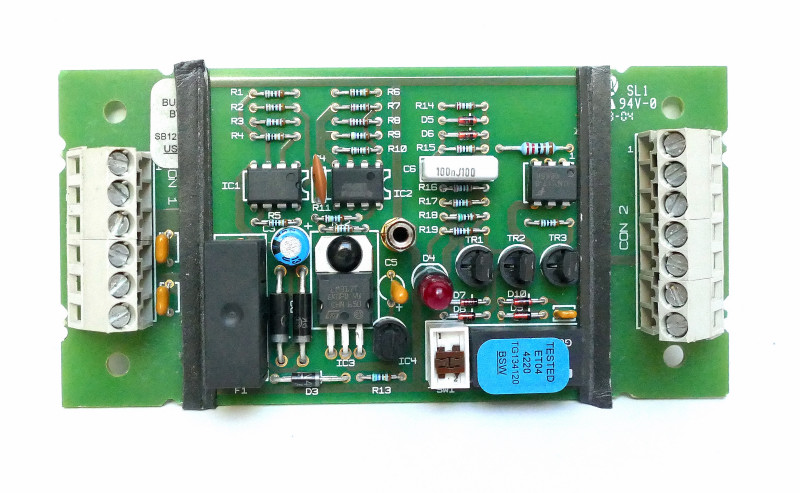

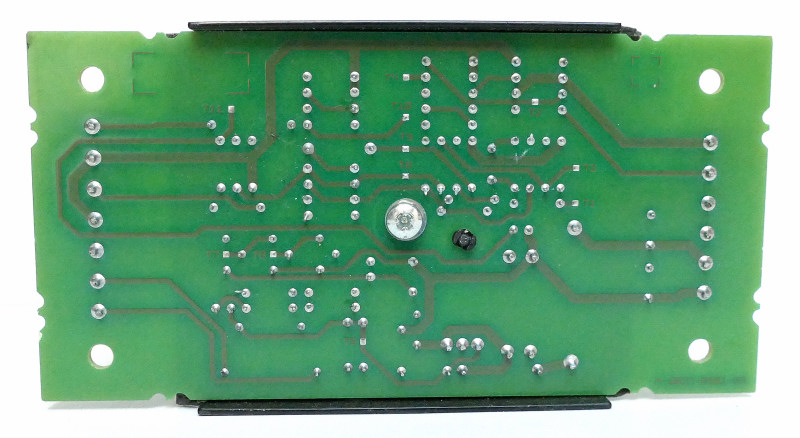

MI 8 interface converts signals from Renishaw's rigid wire probes via a voltage-free solid state relay (SSR) and transmits them to the CNC station control.

• Supply voltage 15 to 30V dc maximum
• Supply voltage 16,5 to 28,5V with 3V peak to peak
  (with ripple) ripple at 100 Hz.
• Supply current 50mA nominal.
• Supply protection 80mA (T) anti-surge fuse (FS1).
• Probe input Normally closed, open for trigger.
• MI 8 output Voltage free - solid state relay (SSR)
  Normally open (N/O) or normally
  closed (N/C), selected by switch SW1.
  Maximum current 50mA peak.
  Maximum voltage ±50V peak.
• Environment Storage temperature range
  -10° to 70°C (14° to 158°F).
  Operating temperature range
  5° to 50°C (41° to 122°F).
