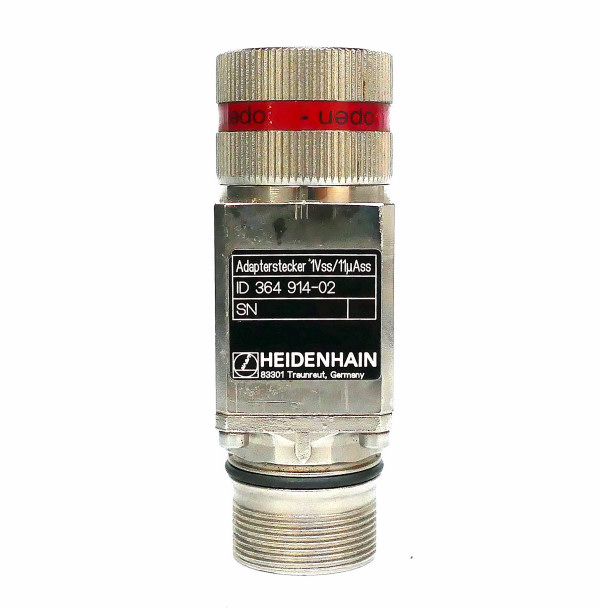

Heidenhain 364914-02 (364 914-02) Signal adapter, 12-pin on encoder side, 1VPP to 11microamp suitable for Heidenhain PWM 9.

This Heidenhain signal adapter accepts 1Vpp and converts it to 11 Micro Amps. Heidenhain 364914-02 has a 12-pin M23 connector on the 1Vpp side and converts it to a 9-pin M23 connector with 11 micro amps.

Adapter connector, a M23 flange socket is screwed on both sides

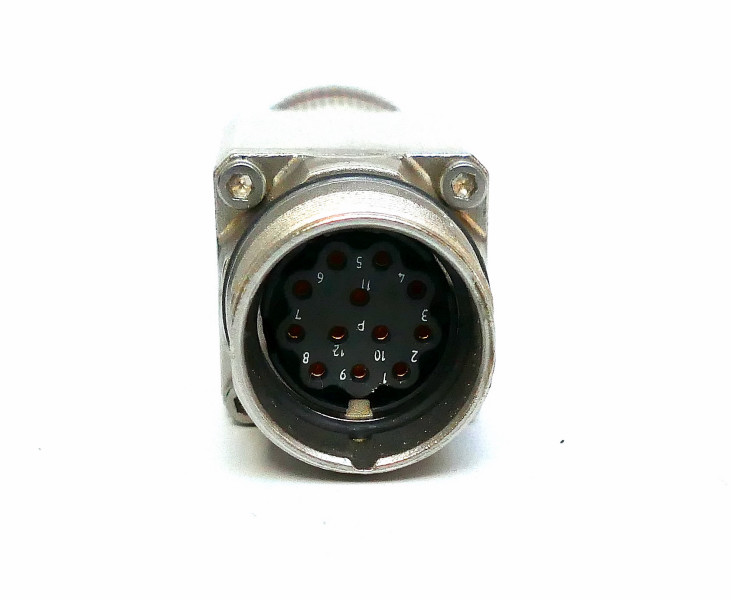

Measuring device side:flanged socket, socket, 12-pin.  Connection assignment: D294999

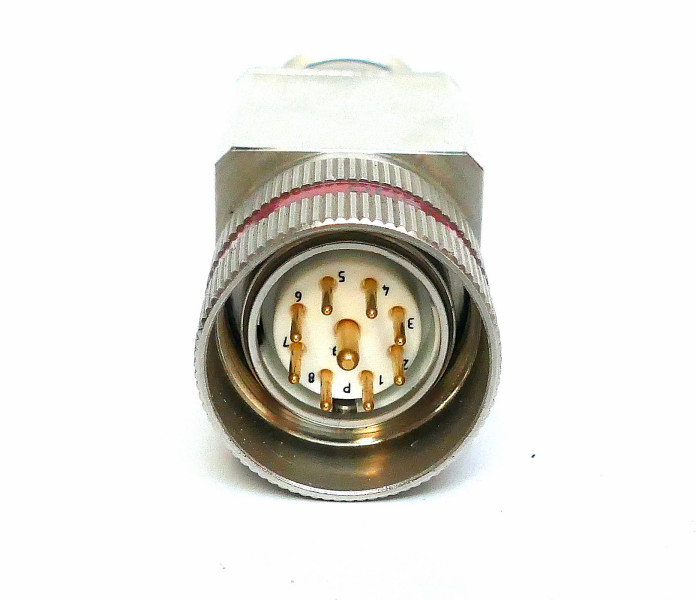

Electronic side: Flanged socket with M23, 9-pin socket Allocation 2: D295051

Weight:0.25 kg
