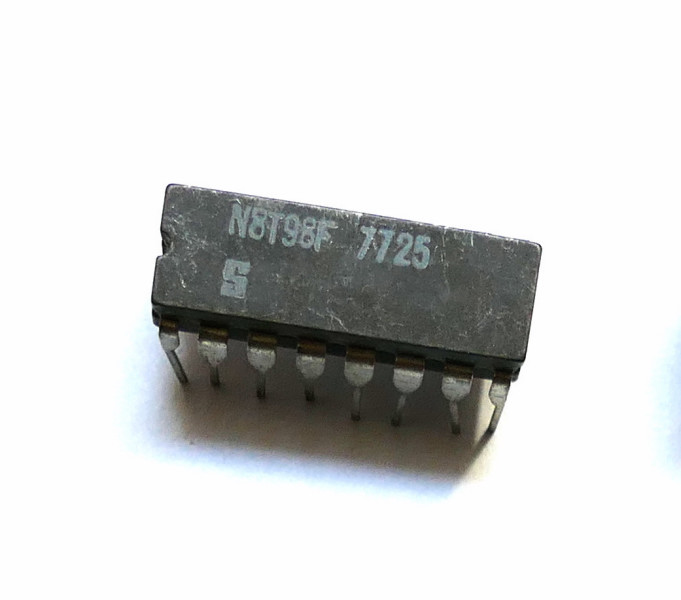

8T95, 8T96, 8T97, 8T98

Each of the 3-state bus interface elements described herein has low current PNP inputs and is designed with Schottky TTL technology for ultra high speed. The devices are used  to convert TTL/DTL or MOS/CMOS 3-state TTL bus levels.

For maximum systems flexibility, the 8T95 and 8T97 do so without logic inversion, whereas the 8T96 and 8T98 provide the logical complement of the input. The 8T95 and 8T96 feature a common control line tor all six devices, whereas the 8T97 and 8T98 have control lines for four devices from one input and two from another input.

8T98 typical propagation delay: 6,5ns

8T98 typical supply current range: 59mA

ASSOLUTE  MAXIMUM RATINGS (Over operating free-air temperature range unless otherwise noted.)

PARAMETERSSTNSTUNIT

VccSupply voltage7.07.0V

V1NInput voltage-0.5 IO  +5.5-0.5 to +5.5V

l1NInput current-30 to +5-30 IO  +5mA

loLContinuous100100mA

VourVoltage appliedlo output in HIGH outputstate-0.5 IO  +Vcc-0.5 to +VccV

TAOperating free-air temperature range-55 IO + 125o to 70oc
